20084139

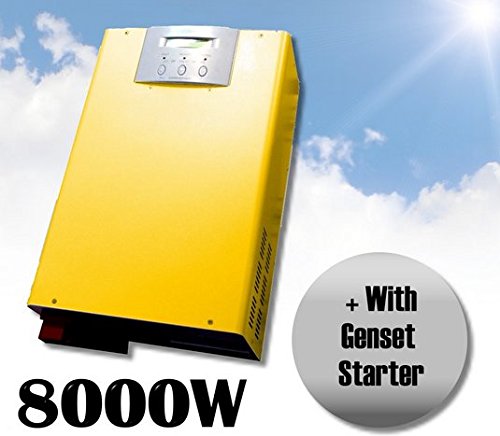

8000w / surge 16000w 48V 220v DC input Pure Sine Wave SOLAR off grid power inverter charger featuring:SUPPORT both AC or DC priority adjustable in LCD; Multiple microprocessor design base; 8000W Pure sine wave inverter/ up to 2X surge support; Built-in 60A AC high efficiency battery charger ; Built-in 50A solar charge controller;; Works with 48V battery system only; Low Frequency design to support wider range of loads; DC start and self-diagnostic sequence:<3% THD
8000w / surge 16000w 48V 220v DC input Pure Sine Wave SOLAR off grid power inverter charger featuringSUPPORT both AC or DC priority adjustable in LCD; Multiple microprocessor design base; 8000W Pure sine wave inverter/ up to 2X surge support; Built-in 60A AC high efficiency battery charger ; Built-in 50A solar charge controller;; Works with 48V battery system only; Low Frequency design to support wider range of loads; DC start and self-diagnostic sequence<3% THD
Transfer time <8ms; Programmable parameters; 24 hour operation; System designed to operate under harsh environment; Detachable LCD module supports remote viewing; Full-feature safety protection; Wall-mounting; CE, EMC certified, Green product ( ROHS);ELECTRICAL SPECIFICATIONS; Continuous/Surge Output 8/16KW; Input Voltage Range 120~270VAC (230V only); Output Voltage 220/230/240VAC; Output Waveform Pure Sine Wave;
Output Frequency 50Hz or 60Hz (auto sensing 45Hz~70Hz); Output Regulation < 3% RMS for battery voltage range; Peak Efficiency 90% (with Green Power Mode); Input VDC / Range 48V 40~58.5V; Transfer Time < 8ms; Recharging Current>85A; 50A SOLAR CHARGER (OPTIONAL); Charging Voltage55.2V ; Max PV Input Voltage 100V ; PROTECTIONS ; Batt. Reverse Polarity By Fuse;
Overload (UPS/Batt. Mode) > 110% Pre-Alarm, Amber LED Blinking / >110~150% for 30 sec, > 150% for 200ms Shutdown ; Over Temperature > 60¡ãC Pre-Alarm; Low Batt (Alarm/Shutdown) <42.5V / <40V; Short Circuit Circuit (UPS Mode) / Electronic Circuit (Battery Mode); LED Indicator Green Power, Amber Warning, Red Fault;

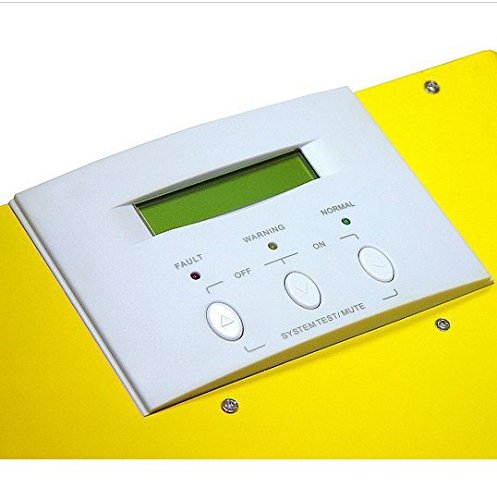

LCD Display UPS Status, Input / Output Voltage Frequency, Load, Battery Voltage, Battery Capacity, Temperature; ENVIRONMENTAL / MECHANICAL SPECIFICATIONS ; Certification / EMC CE / EN62040-1-1, EN62040-2; Operating/Storage Temp. 0¡ãC ~ +40¡ãC / -20¡ãC~ +70¡ãC ; Operating Humidity 20~90%RH Non-Condensing; Dimension452*670*277mm; Weight 54kg
