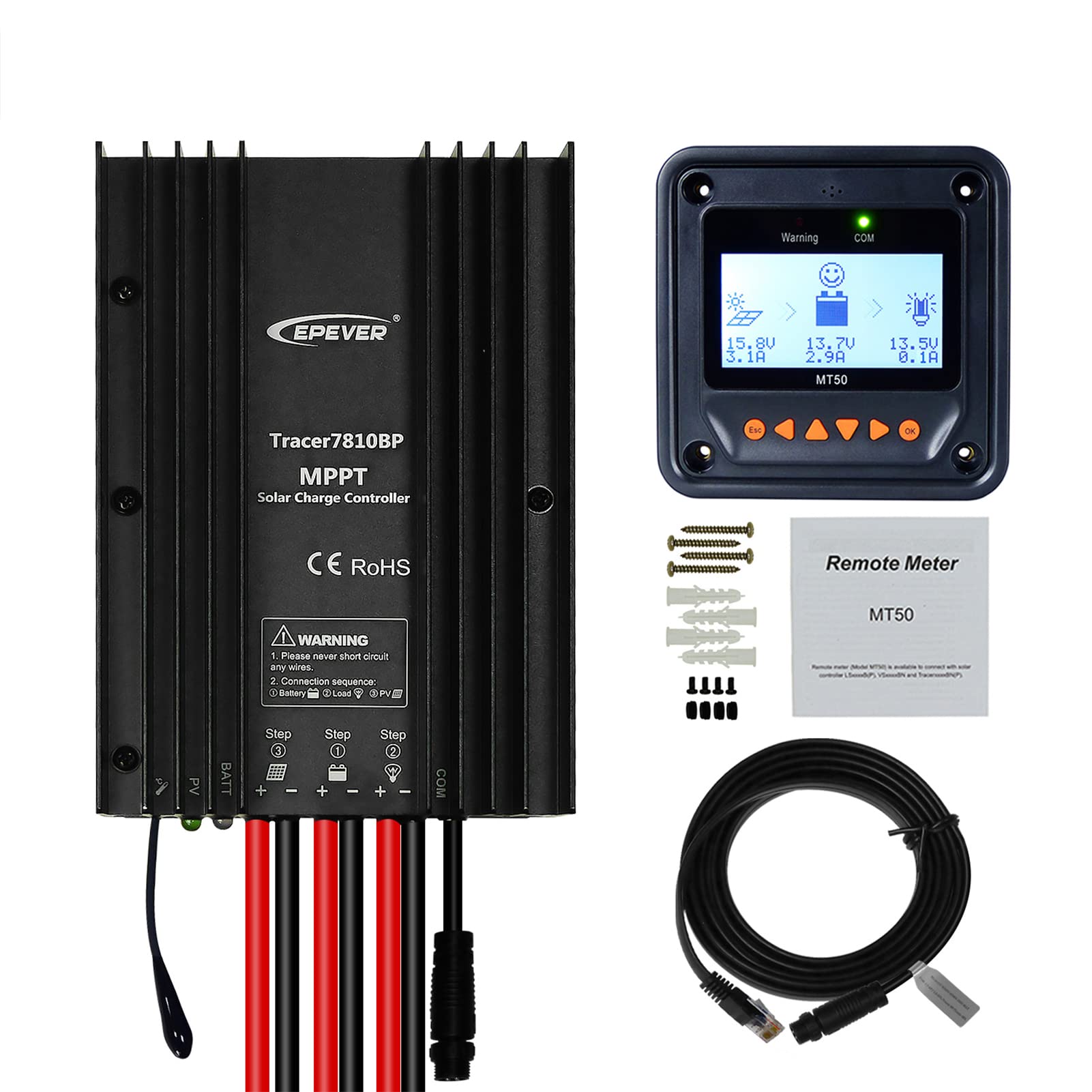

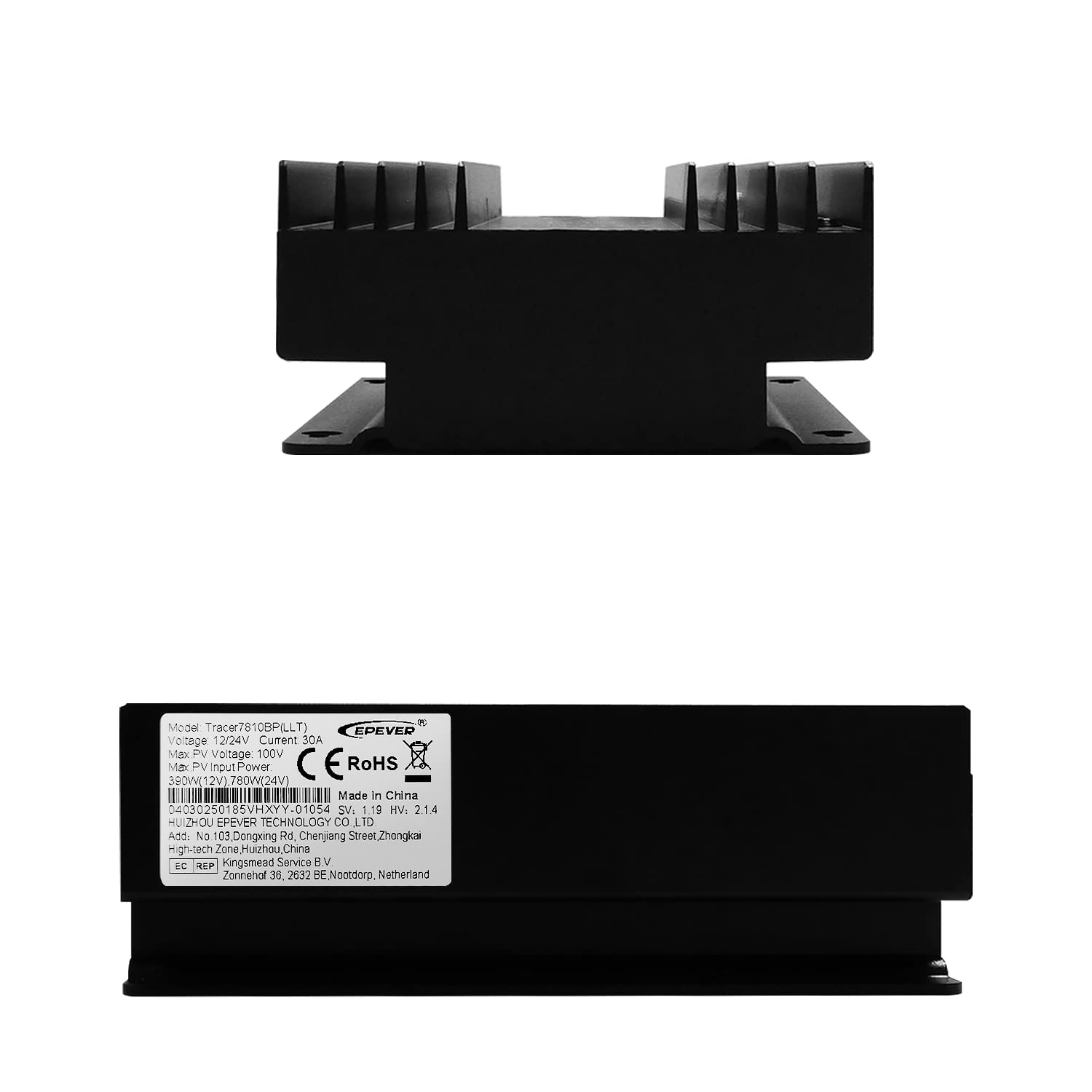

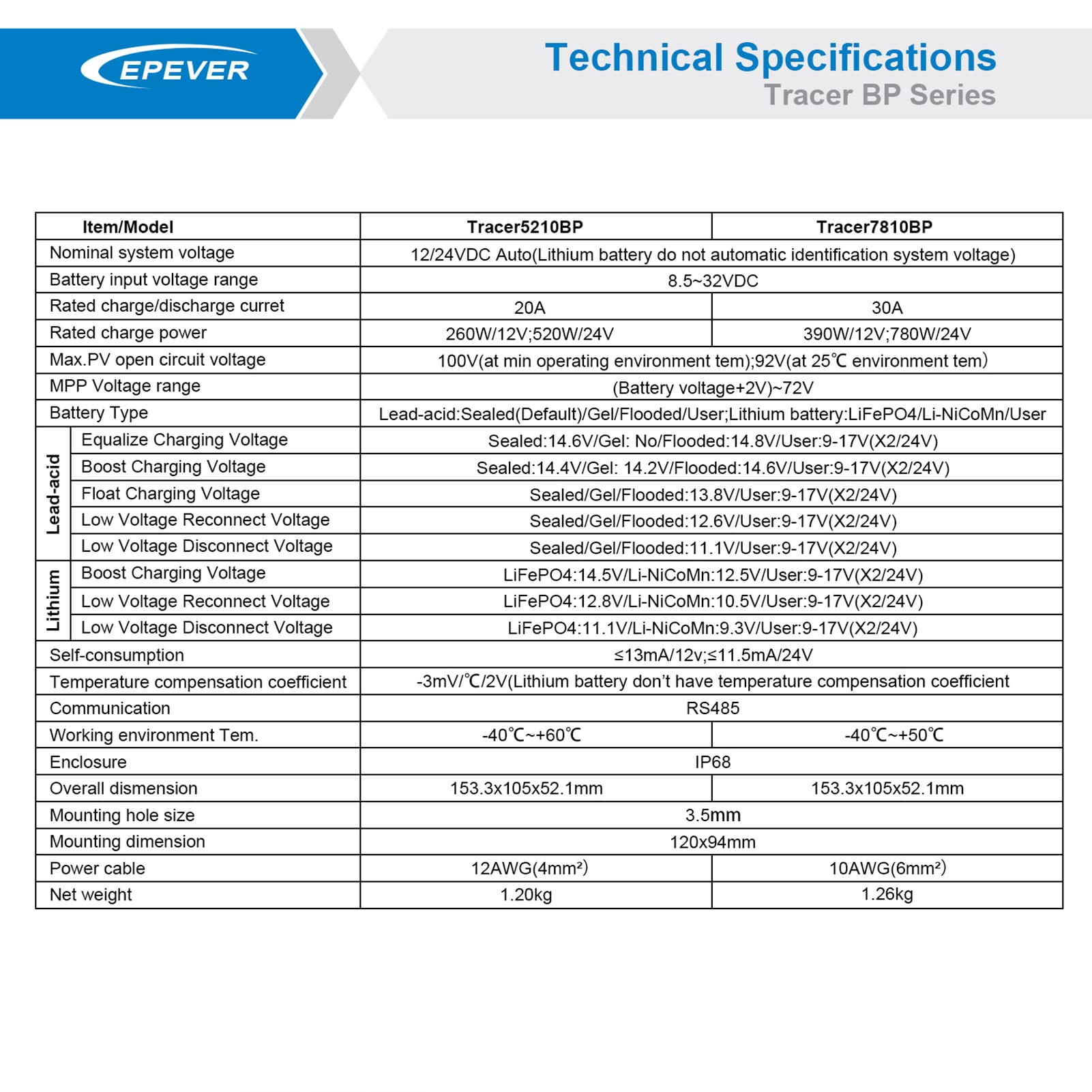

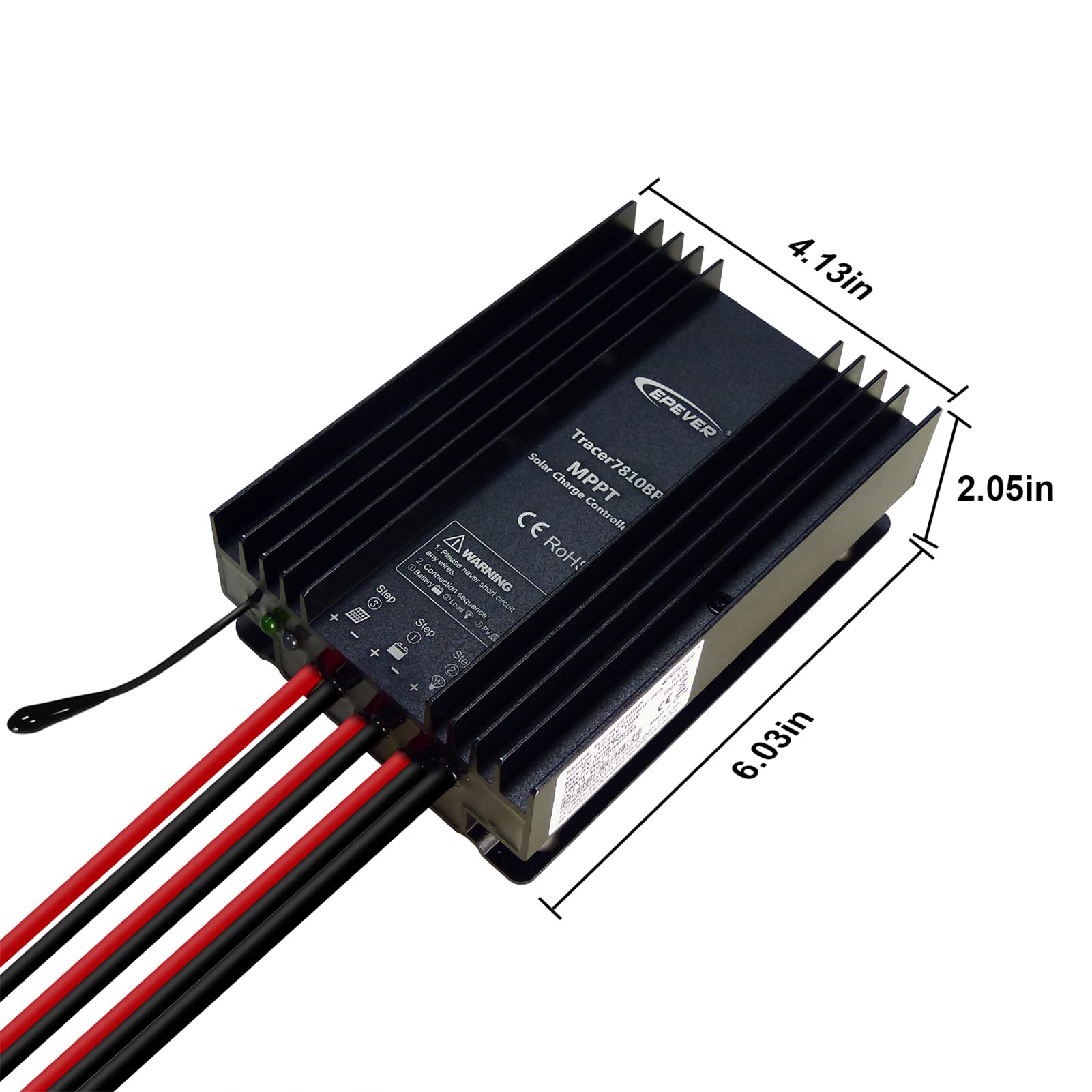

EPEVER 30Amp MPPT Solar Charge Controller Waterproof ( Tracer7810BP+MT50+RS485) kit ,12V/24VDC auto work ,Max PV 100V , Common negative grounding . Suitable for Lead-acid & Lithium batteries & User type Technical Data: Model: Tracer7810BP + MT50 + RS485 CableRated charge and discharge current :30 AmpNominal system voltage:12V/24V DC auto identify (Manually select system voltage for lithium battery)Max. PV input power: 390W charge for 12V battery system or 780W charge for 24V battery system Max. PV open circuit voltage:100V(at minimum operating environment temperature) ;92V(at 25℃ environment temperature)Grounding : Common negativeBattery type : Lead-acid battery: Sealed(Default), Gel(AGM), Flooded ; Lithium battery: LiFePO4, Li-NiCoMn ; User . Battery input voltage range : 8.5～32VMPP voltage range:V(BAT+2V)～72VTracking efficiency : ≥99% , Max. conversion efficiency :98%Temperature compensation coefficient: -3mV/℃/2V (Lithium battery don’t have temperature compensation coefficient)Working environment temperature : -40℃～+50℃Self-consumption: ≤13mA(12V);≤11.5mA(24V)Enclosure: IP67Recommend wire size: 10AWG(6mm2) ; Dimension: 153.3*105*52.1mm ; Weight :1.26 KG Package List: 1 X MPPT Solar Charge Controller 30Amp (Tracer7810BP)1 X Remote Meter (MT50)1 X Communication cable (CC-RS485-RS485-150U-4LLT)2 X Manual (English) EPEVER Tracer-BP series MPPT charge controller is Glue waterproof design , same functions as Tracer-AN series and added Features : Tracer-AN could only support Load Working Mode : Manual mode ; Light ON/Off ; Light ON +Timer . Tracer-BP could also support Real-time Control mode .IP67 waterproof degree. Note : Our local warehouse located in Chicago, Illinois, US. our professional engineer local team supply solar system help for you in time . Product Features : Adopt high quality components of ST,IR and Infneon, make sure product using lifespanWide working environment temperatureApply to lead-acid battery and lithium battery, Lithium battery self-activating and low temperature protection functionMaximum conversion efciency of 98%, Advanced Maximum Power Point Tracking (MPPT) technology, with tracking efciency no less than 99%, Ultra-fast tracking speed and guaranteed tracking efciency ,Accurately recognizing and tracking of multiple power pointsPV power limitation functionMonitoring and setting parameter via MT50 or APP or PC software with RS485 communication interfaceUse of standard Modbus communication protocol for RS485 bus connections, communication protocol compatibility much better , the RS485 connector can provide power supplyAluminum housing for better coolingReal-time energy statistics functionIP67 waterproof degree, Long lifespan design Electronic protections PV Over Current ; PV Short Circuit ; PV Reverse PolarityBattery Reverse Polarity; Battery Over Voltage; Battery Over Discharge; Battery OverheatingLithium battery Low Temperature; Load Overload; Load Short CircuitTemperature sensor break down Load Working Mode 1) Manual Mode ; 2) Light ON/OFF(Default) ; 3) Light ON+ Timer ; 4) Real-time Control (Control the load ON/OFF time through setting real-time clock.) NOTE: In the mode of Light ON/OFF and Light ON/Timer, the Load is turned on after 10Min. delay . LED Indicators Note :When the battery type is Lithium Battery ，the controller do not recognize the system voltage automatically. Troubleshooting Note : When it is overload or short circuit, the load have 5 times auto-recovery output function, which each times delay respectively 5s, 10s, 15s, 20s, 25s. Tracer7810BP +MT50+RS485 Step: Connect solar system in the order of 1.battery--> 2. load--> 3.PV array ; and disconnect solar system in the reverse order 3. 2. 1. Battery must be connected first ! Never connect soalr panel array to controller Without/Before connect battery.DO NOT connect any inverter/wind/Alternator or Charger into the charge controller directly ! You should connect with battery and add fuse .If there is a long distance between PV array and controller or between controller and battery, larger wires can be used to reduce voltage drop and improve performance. (Recommended wire size only for reference.) How to monitor and program parameters for Battery？ Via Remote Meter MT50 (Need CC-RS485-RS485-150U-4LLT communication cable )Via phone APP(Solar Guardian) (Accessories needed：EPEVER-BLE-RJ45-D or EPEVER-WiFi-2.4G-RJ45-D )PC Software download website: EPEVER official website or read in manual . MT50 EPEVER-WiFi-2.4G-RJ45-D EPEVER-BLE-RJ45-D CC-RS485-USB-150U Tracer4210AN XTRA4415N Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.4 out of 5 stars 82 4.1 out of 5 stars 434 4.1 out of 5 stars 434 4.1 out of 5 stars 434 4.4 out of 5 stars 365 4.3 out of 5 stars 75 Price $31.89$31.89 $35.97$35.97 $34.97$34.97 $10.99$10.99 $117.99$117.99 $169.99$169.99 Brand EPEVER EPEVER EPEVER EPEVER EPEVER no data
EPEVER MPPT Solar charge controller 30Amp IP67 Waterproof kit (Tracer7810BP+MT50+RS485 Cable) 12V/24V Auto identifying system voltage, Max.PV(Voc) 100V, solar panels Max input power 390W charging for 12V battery system or 780W charging for 24V battery system,Common Negative Grounding. Plug and play kit, convenient parameter adjustment, real-time display of working status and data
Support battery types Lead-acid (Sealed(Default), Gel, Flooded); Lithium (LiFePO4 , Li-NiCoMn) and User-defined. Lithium battery self-activating and low temperature protection function, Compatible with AGM batteries too, User mode allow to set your parameters by Remote Meter MT50. Battery temperature compensation function, Real-time energy statistics function.
Maximum conversion efficiency of 98% . Advanced Maximum Power Point Tracking (MPPT) technology, with tracking efficiency no less than 99%. Ultra-fast tracking speed and guaranteed tracking efficiency , Accurately recognizing and tracking of multiple power points. Wide MPP operating voltage range.

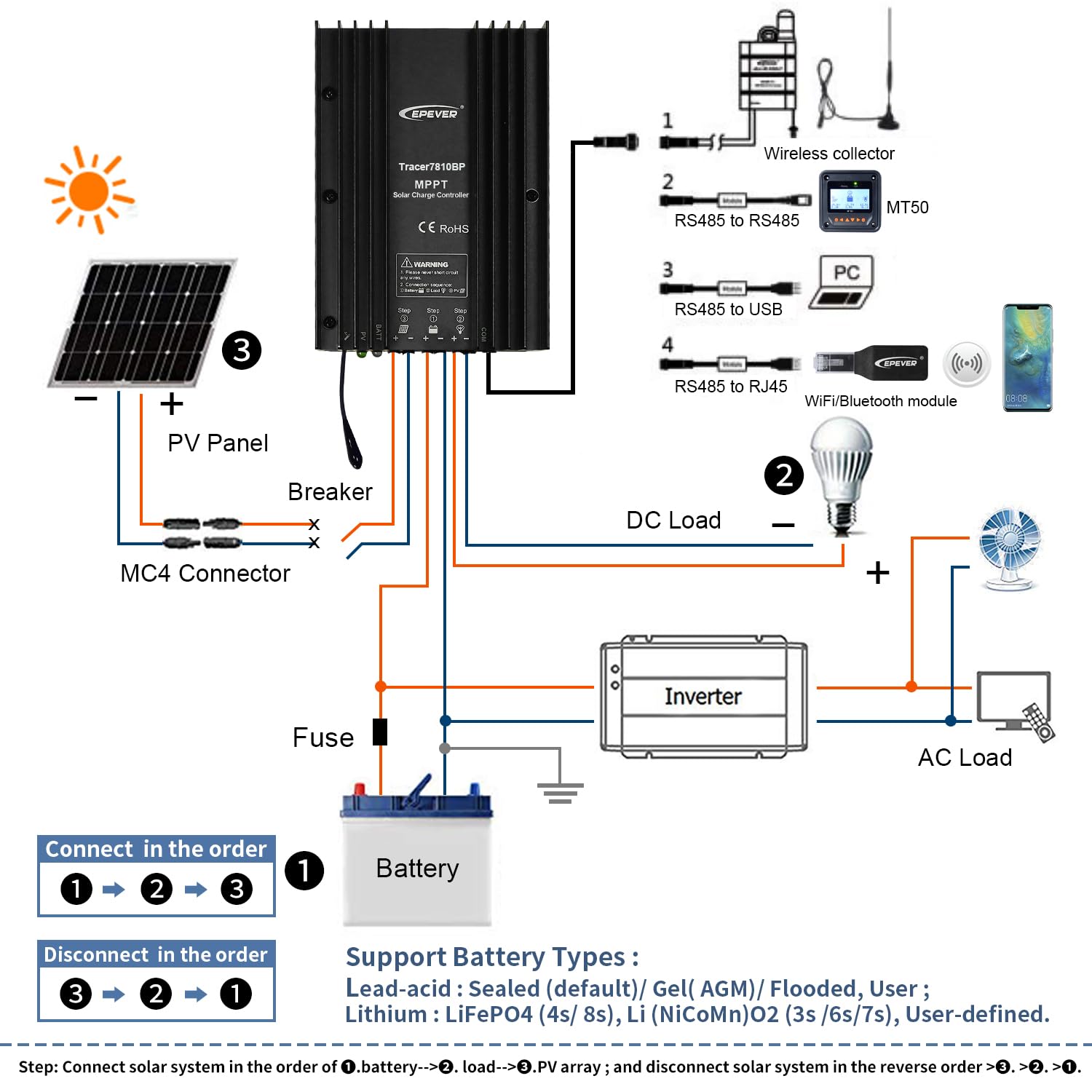

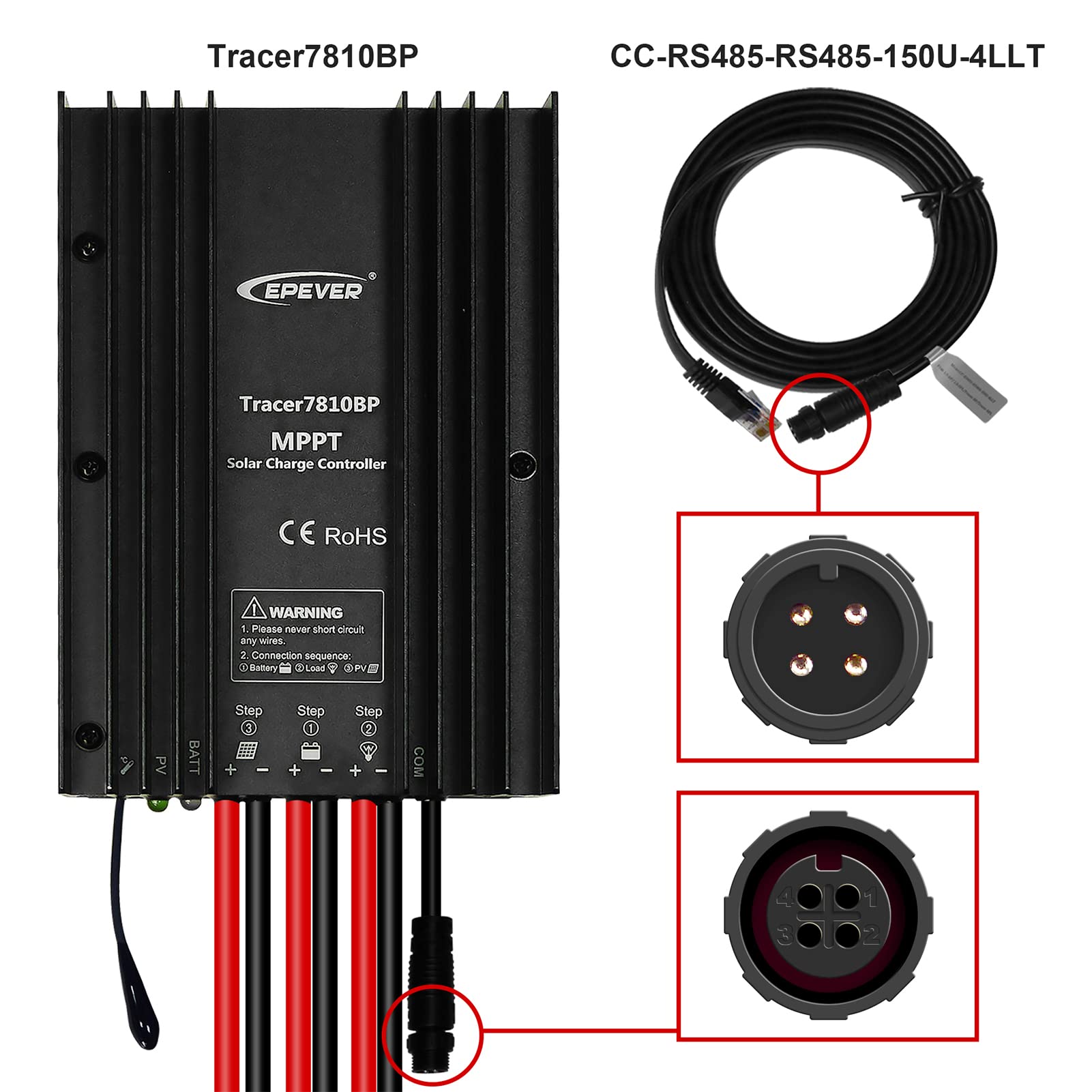

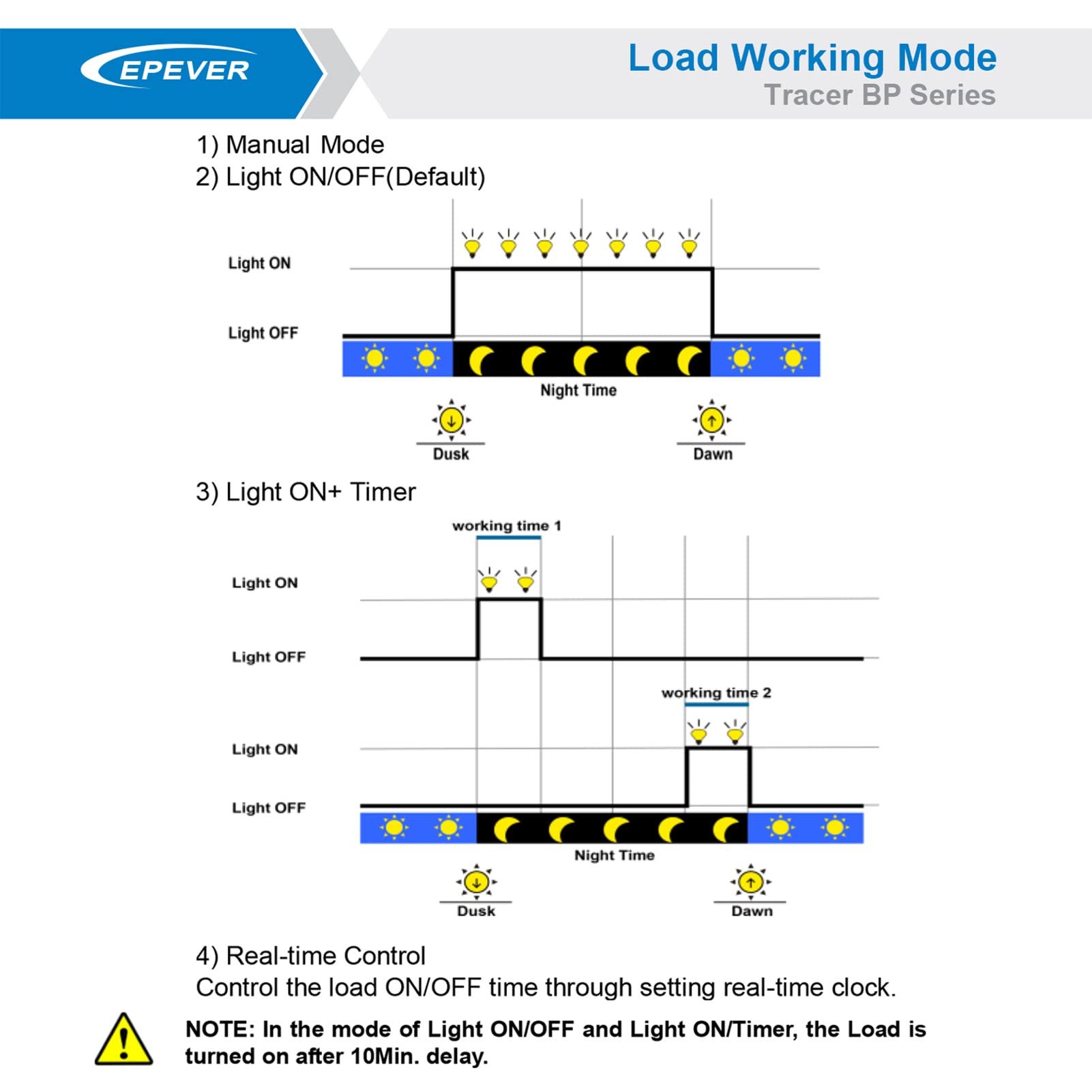

With RS-485 communication bus interface and Modbus communication protocol. Monitor and set the parameters via remote meter MT50 or WiFi/BLE adapter by APP(Solar Guardian) or PC software. LED indicators dynamically status working condition and trobluesshooting. Multiple load control working modes Manual mode ; Light ON/Off ; Light ON +Timer ; Real-time Control mode.

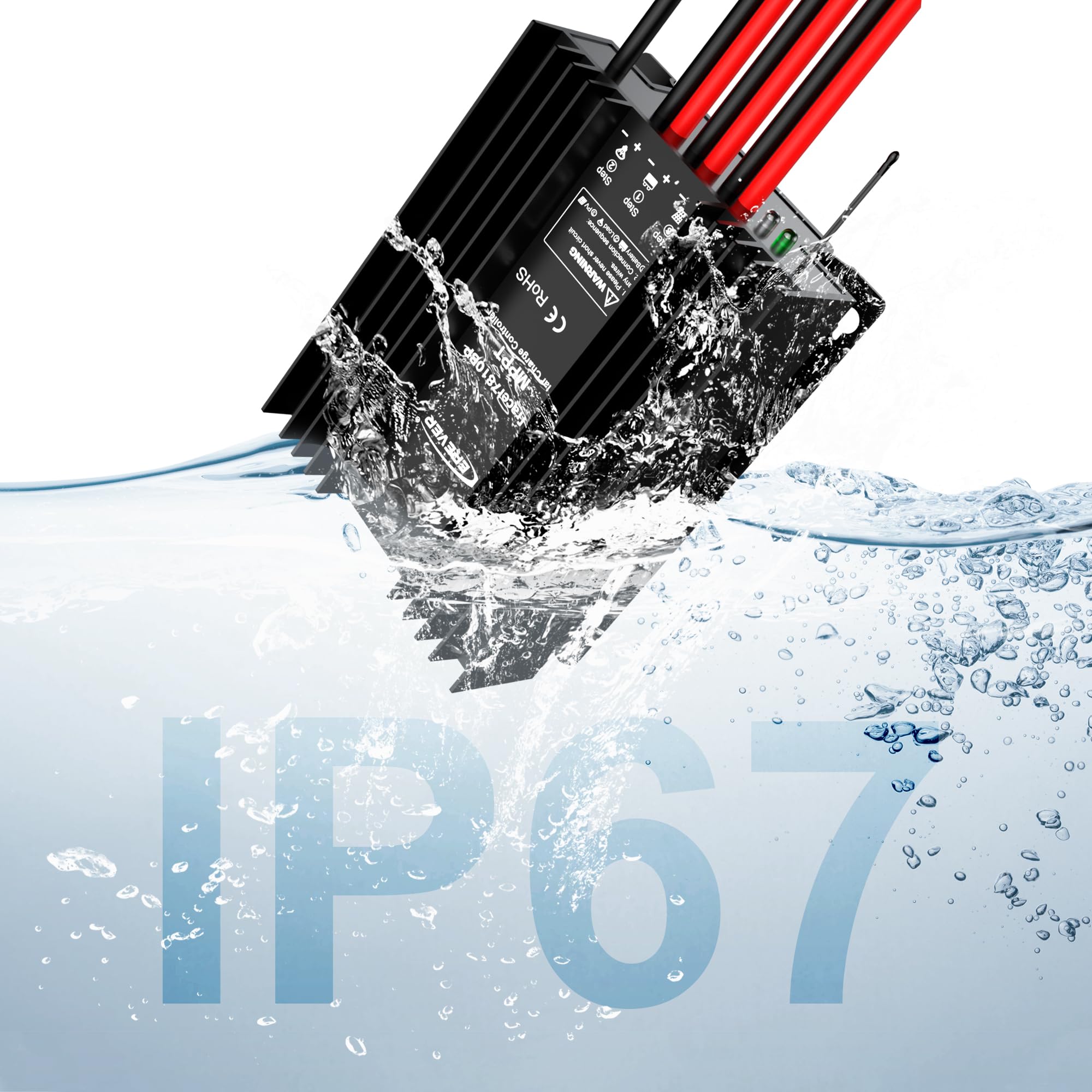

IP67 waterproof degree, Gel-potted design for better heat dissipation, Long lifespan design. Widely used for various applications, e.g. solar RV, camping, household system and industrial field monitoring, traffic signal, solar street light, solar garden lamp, Boats, yachts etc.
