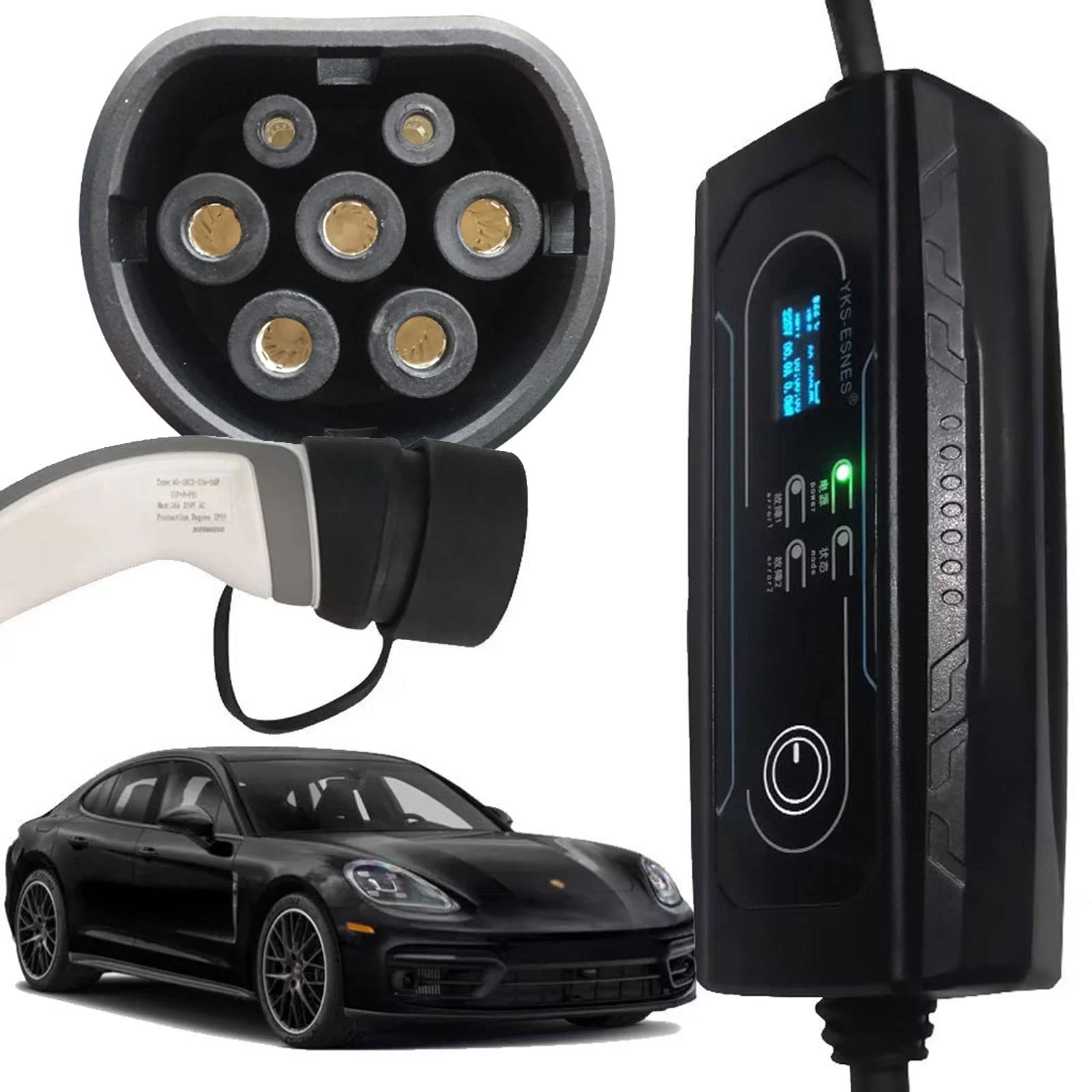

Pa.na.me.ra 2021 2020 2019 2018 2017 2016 2015 2014 2013 2012 2011 Variant：Plug-In Hybrid Estate | HatchbackType：2.9 4 | 2.9 4S | 4.0 Turbo S | 3.0 S E-HybridChassis：AWD -- 971 | RWD -- 970Engine：2894cc 243KW 330HP | 340KW 462HP DGPA: MDG. PA2894cc 243KW 330HP | 340KW 462HP MDG. PA3996cc 404KW 550HP | 500KW 680HP MCV. DA2995cc 248KW 337HP MCG. FA2894cc 324KW 440HP DGPC2995cc 245KW 333HP | 279KW 380HP | 306KW 416HP MCG. EA; MCG. FANotes:Vehicle end is 7 pin plug!☀Specification： Type:Portable EV ChargerConnection：7 PinsCharging Plug：Type 2Power Plug：Schuko | UK Plug | CEECharging Standard：IEC 62196Rated Voltage: AC 220VInput Frequency: 50hz or 60hzRated Current: 6A Min-16A Max Adjustable(8A/10A/13A/16A)Power：3.3 KW/hCable Type: TPU 3x2.5+2x0.5Cable Length：5 MetersDimensions: Control Box 170(L)*84(M)*42mm(H)Working Temperature: -40℃~+60℃Mtbf: 100000 HoursProtection Class: IP55Installation Method: Carry It With The Car, Plug And PlayPower Supply Mode: AC Socket Power SupplyIndicator Lights: Power/Status/Fault 1/Fault 2Pins: Silver Plated + Top ThermoplasticCharging Cable: Customized Production, Flame Retardant, High And Low Temperature ResistanceFunction:Voltage MonitoringCertification：CESuitable For Most Hybrid/Pure Electric New Energy Vehicles
[Usage Steps]:Insert the power plug firmly into the socket; touch the round button of the control box. Adjust the current 8/10/13/16a; insert the gun head into the charging port of the car, and it is in the charging state at this time.
[Charging Time]: T=W/Ui (time=battery capacity/charging power). For example: charging time (mode: 16a, theoretical value)=battery capacity/charging power=24kwh/(16a×240v)=24kwh/3840w=24kwh/3.84kw=6.25h
[Four-Speed Adjustment]: touch the round button on the control box, the current can be adjusted to 8/10/13/16a
[Safety Protection]: leakage current, over and under voltage, over current, charging box over temperature, line plug over temperature, anti-storage, reverse input, grounding, relay adhesion protection
[Thoughtful Design]: Ergonomically designed handheld handle, comfortable to hold, easy to pull out and insert. The rear socket protective cover effectively protects the pins, sockets and jacks of the charging gun. With a Tpu sheathed lighter cable, it is more wear-resistant.
