87300507

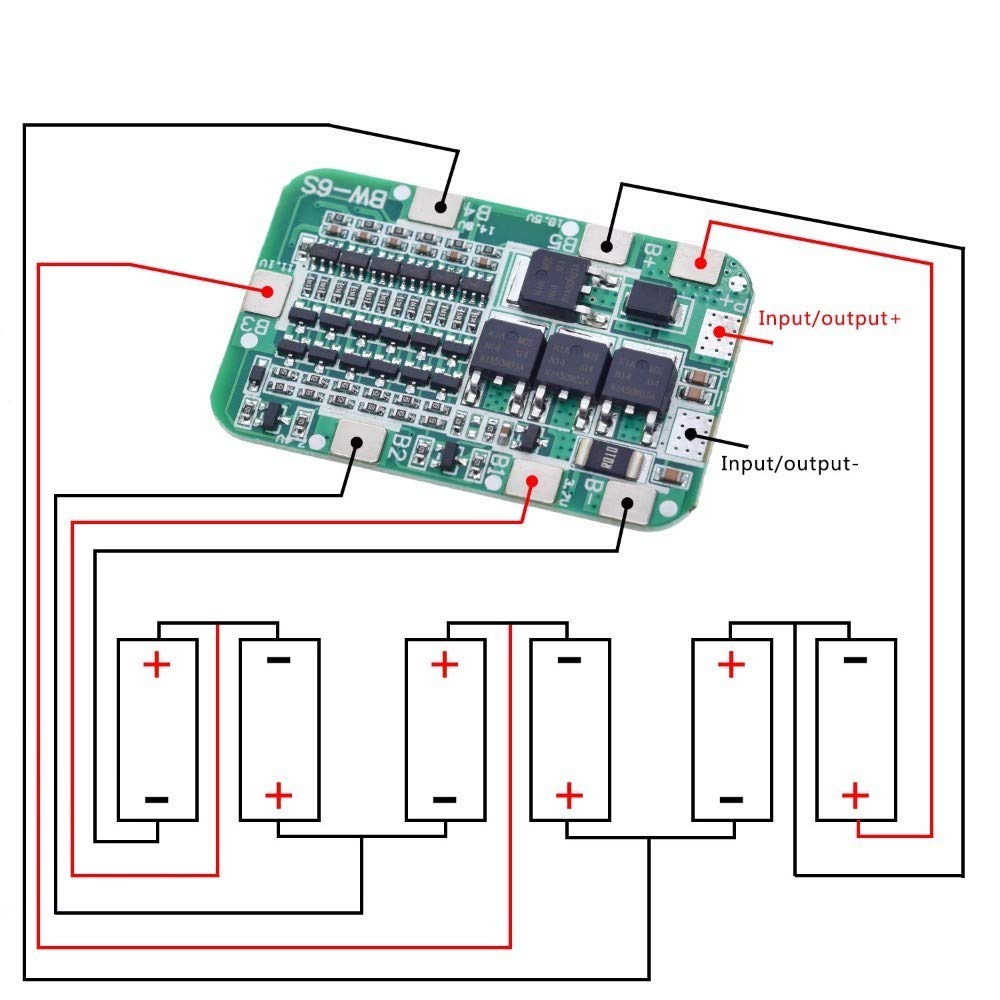

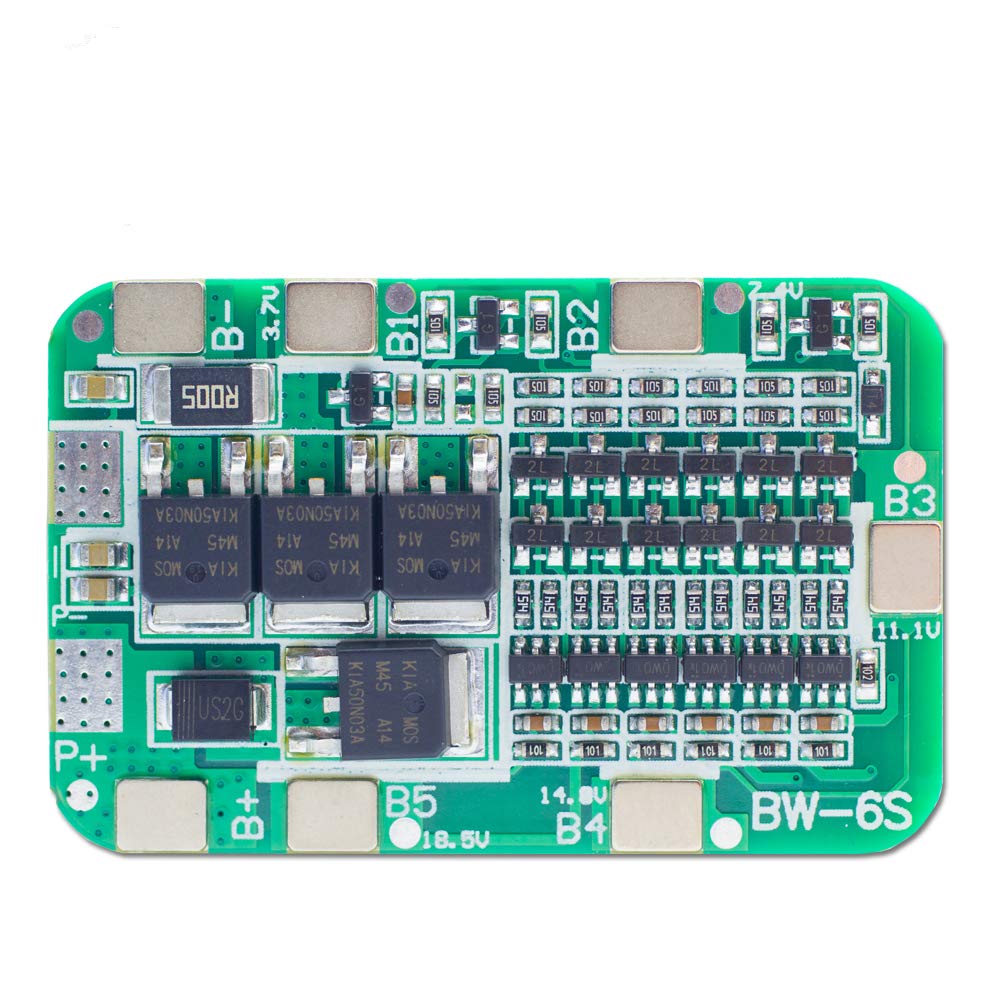

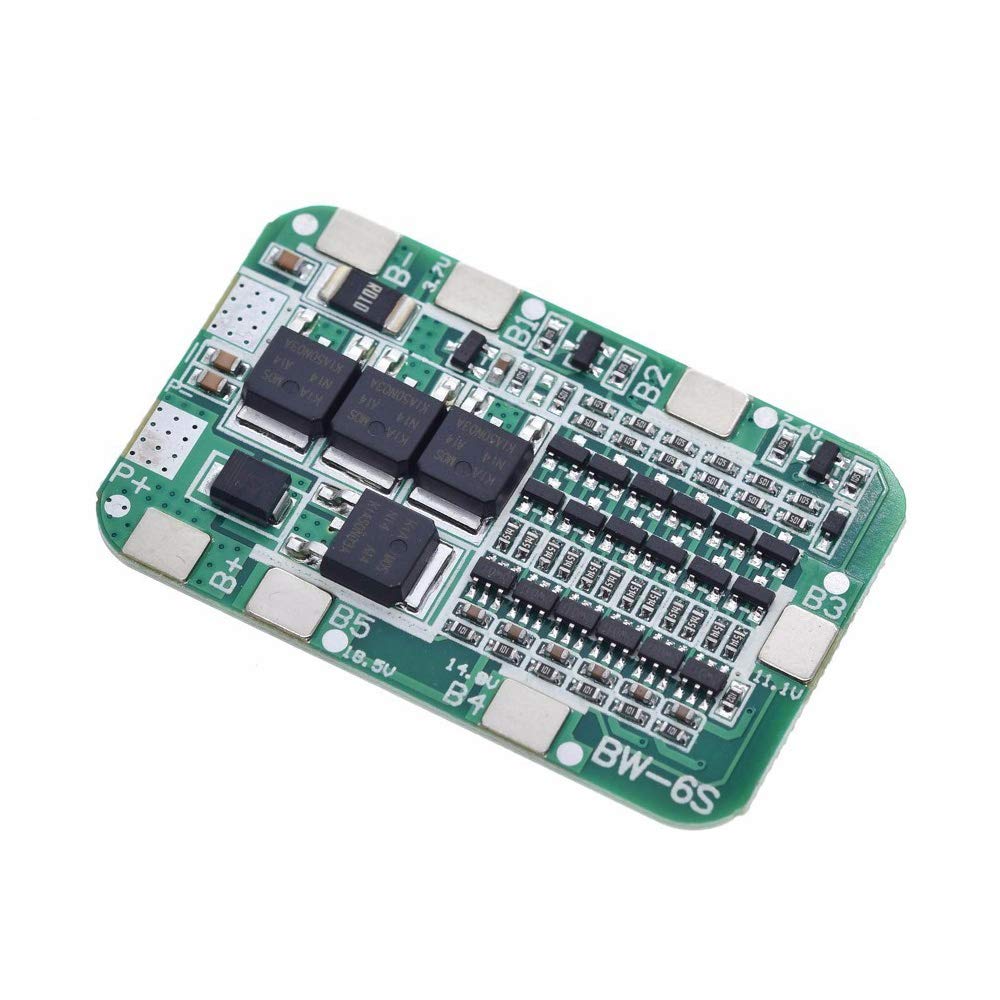

Specifications: Size: approx.50*30*2mm Lampshift maximum discharge current: 15A Instantaneous discharge current: 25A Charging voltage: 25.5V Charging current: 15A (MAX) Battery: Nominal 3.7V lithium battery Overcharge detection voltage: 4.28 ± 0.05V Overcharge protection delay: 0.1S Overcharge release voltage: 4.08 ± 0.05V Over discharge detection voltage: 2.55 ± 0.08V Overdischarge detection delay: 0.1S The overdischarge release voltage: 2.9 ± 0.1V Overcurrent detection voltage: 150mV Overcurrent detection delay: 9mS Overcurrent protection current: 30 ± 3A Overcurrent protection release condition: Disconnect the load Short circuit detection delay: 250uS Short circuit protection Release condition: disconnect load self-recovery Main circuit conduction resistance: ≤20mΩ Working current: ≤30uA Sleep current (battery over discharge) ≤10uA Temperature range: -30 / + 80 ℃ Attention: When you wiring, plese do it strictly according to the wiring diagram. Do not deliberately make it short circuit. Do not mix the good battery and poor battery to use. The internal resistance of 6 battery capacity are closer will be better. Package inlcuded: 1x 6S 15A lithium Battery Protection Board
High-accuracy voltage detection circuit, fine workmanship and durable.
MULTIPLE PPROTECTION Over-discharge protection, overcurrent protection, overcharge protection; Short circuit protection; High charge and discharge current; Compact size and lightweight.
Short circuit protection/Over current protection/Overload/Over discharge protection disconnect load self-recovery.
Low internal resistance, high power MOS. MOS transistor can control the battery charge and discharge, low standby current consumption.
Applications Use for variety of capacities and various shapes 3.7V lithium batteries,Massager battery pack, LED light backup power supply, solar street light battery pack, monitor standby power supply, etc.
